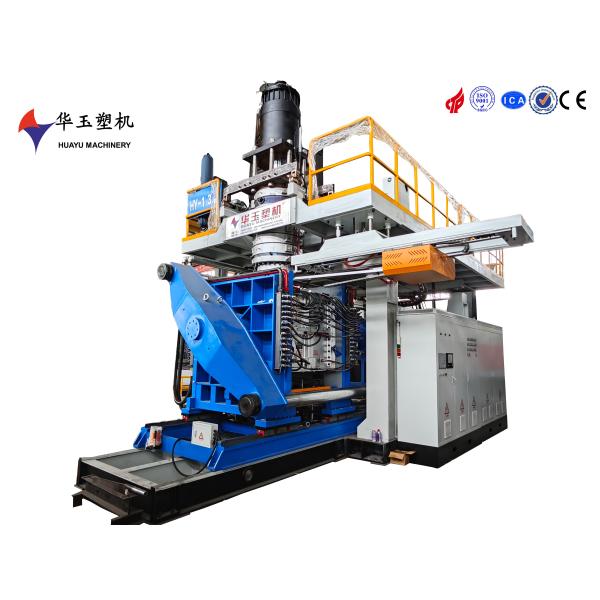

HUAYU1600L-9 Blow Moulding Machine for HDPE 500-2000L

Name: HUAYU1600L9 Blow Moulding Machine for HDPE 5002000L
Brand: HUAYU
Price: 320000 USD

Wholesale HUAYU1600L-9 Blow Moulding Machine for HDPE 500-2000L from china suppliers

Brand Name : HUAYU

Model Number : HY1600-9

Certification : ISO9001, CE

Place of Origin : CHINA

MOQ : 1 SET

Price : 320000 USD

Payment Terms : T/T,L/C

Supply Ability : 1SET 120DAYS

Delivery Time : 4 MONTH

Packaging Details : be disassembled into many parts for container transportation

Accumulator Capacity : 30KG

Blow Moulding Type : Extrusion Blow Moulding

Platen Size : 1800*2000*70mm(W*H*T)

Cleaning Method : Easy cleaning

Applicable Material : HMWHDPE

Color : Customied

Extruder Motor : 55/75/55kw

Parison : MOOG 200point

Feeder Type : Vacuum Feeder

Machine Dimension : 12*7*7m

After Sales : OVERSEAS SERVICE

Mould Material : Aluminum

Screw Dia : 120MM

Plastic Processed : HDPE、PE

Recyclability : Recyclable

Contact Now

The HUAYU1600L-9 Blow Moulding Machine offers a low-maintenance design, making it ideal for continuous large-scale plastic production. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality.

Basic Specification
applicable material	HDPE	China·HUAYU
capacity range	500-2000L,10layers
total weight	68T
Voltage	Pending
total power	675kw
average power	370kw
Machine dimension (LWH)	12.6107.5
productivity	10-24pcs/h
Auto Feeder
hopper material	stainless steel	Stable performance, easy maintenance
feeding type	vacuum loader
feeding motor	11kw
Extrusion System
Screw diameter	90mm2 ,100mm4	Nitrided 38CrMoAIA
Screw L/D ratio	28:1	special designed screw can ensure the material plasticizing uniform and efficient
Extruder motor	45kw2,55kw4
Reducer	ZLYJ-2502, 2804	Best quality brand in china ,long life and low noise
Screw heating power	4kw*24
Plasticizing capacity	700kg/h
